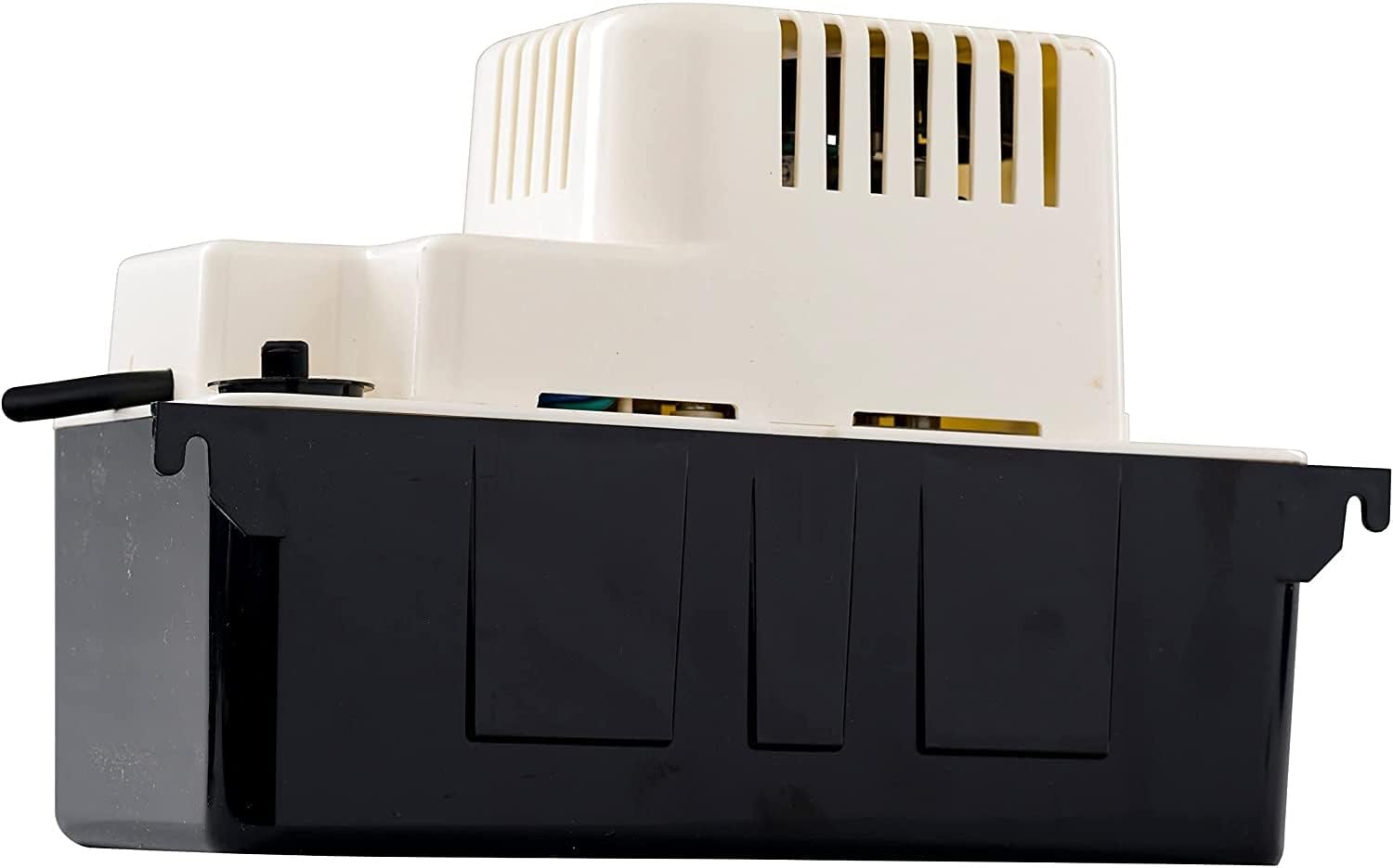

VCMA-20ULS 115 Volt, 80 GPH, 1/30 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 6-Foot Cord, White/Black, 554425

The Little Giant VCMA-20ULS 115-volt condensate removal pump is a 1/30 hp pump designed for collecting, detecting, and removing condensation from air conditioners, dehumidifiers, and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensate and condensing boilers. This unit includes a 1/2-gallon condensate holding tank and a 3/8" O.D. barbed discharge adapter with a built-in check valve, as well as a 6' power cord with 115V plug and an overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm (alarm not included); basic wiring knowledge is required. The high-performance 115-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadian standards.

Features & Benefits

• 1/30 hp high-performance motor pumps 80 gallons of water per hour
• ABS, tank, motor cover and volute
• Stainless steel motor shaft
• 1/2-gallon tank capacity

Installation Tips

• This pump comes shipped with a cardboard insert marked "REMOVE". Please remove and discard this insert before operating pump. Failure to remove the insert will cause the pump to overflow.
• Check the tubing for obstructions or kinks. Clean or replace the tubing, if necessary.

This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc.

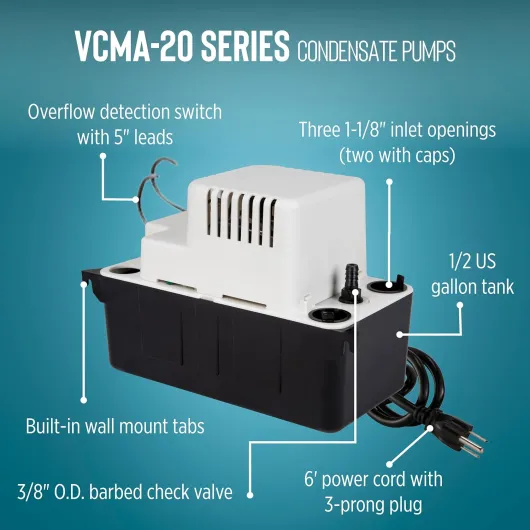

Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high-efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. The VCMA-20ULS features a stainless steel pump shaft, a snap-action pump switch, a removable 3/8 inch barbed check valve, a 6 foot power cord, and a 1/30 horsepower high performance motor with thermal overload protection. The pump also features an ABS tank, ABS motor cover, and ABS volute. With a check valve, the VCMA-20ULS pumps 80 GPH (with a discharge head of one foot). The pump's tank has a capacity of 1/2 gallon.

• Plastic
• Imported
• AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and dehumidifiers
• THERMALLY PROTECTED, HIGH PERFORMANCE MOTOR: 1/30 HP, 1.5 Amps, 93 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
• BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)
• INCLUDES OVERFLOW DETECTION SWITCH: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required
• SPECIFICATIONS: 3/8" OD barbed discharge, 80 GPH at 1' lift, 20', maximum 8.7 PSI, 3 inlet drain holes, 6'; maximum water temperature: 140° F
