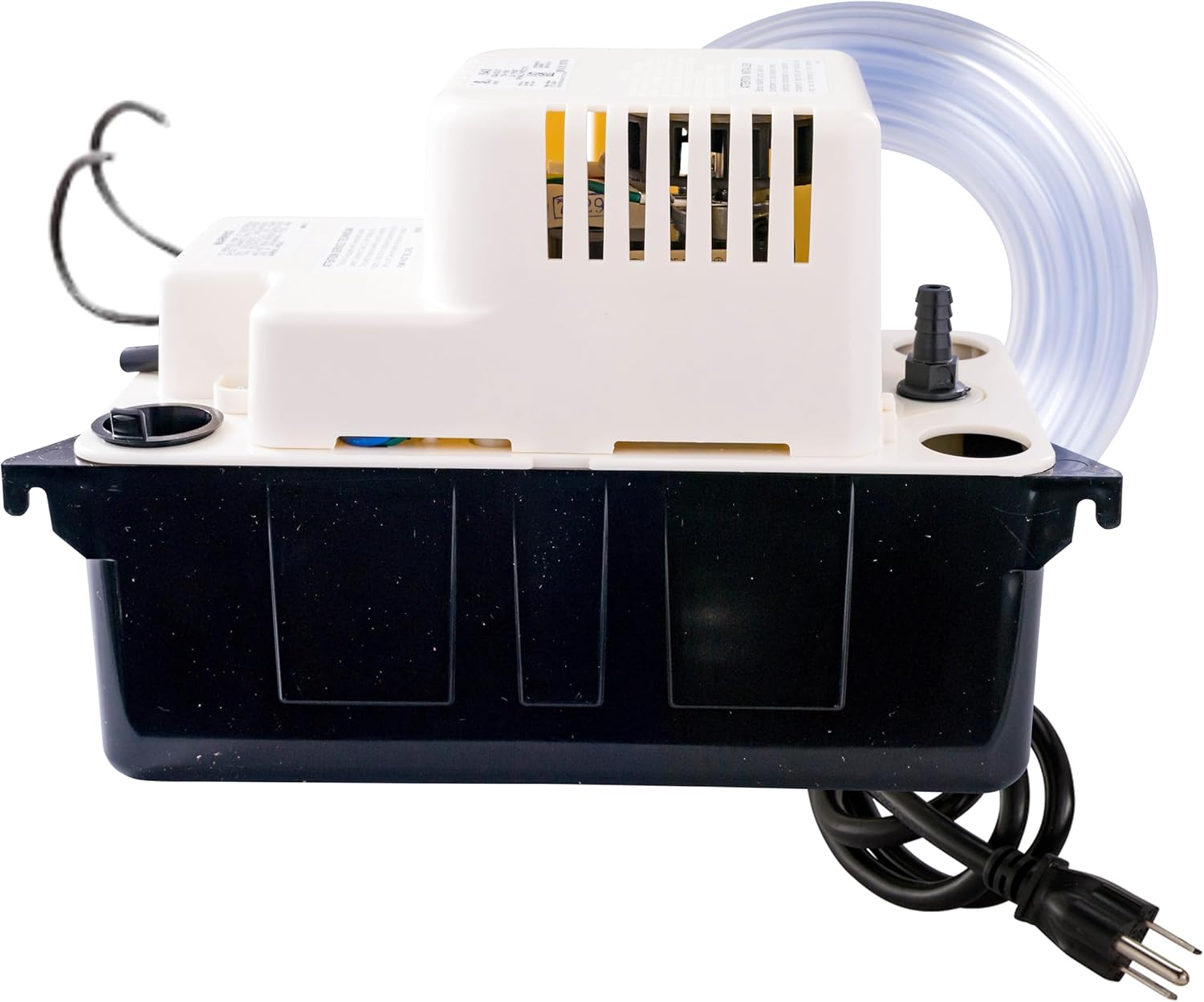

VCMA-15ULST 115 Volt, 65 GPH, 1/50 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers with Overflow Detection Switch and 20-Foot Tubing, Black/White, 554415 Includes Overflow Detection Switch/Tubing Pump

Product Description

The Little Giant VCMA-15ULST condensate removal pump is a 1/50 hp pump that is designed for collecting, detecting, and removing condensation from air conditioners, dehumidifiers and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensation and condensing boilers. This unit includes a 1/2-gallon condensate holding tank, a built-in check valve, 6' power cord with plug, and an overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm (alarm not included); basic wiring knowledge is required. This model also comes with 20' of 3/8" ID vinyl tubing. The high-performance 115-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadian standards.

Features & Benefits

• 1/50 hp high-performance motor pumps 65 gallons of water per hour
• ABS tank, motor cover, and volute
• Stainless steel motor shaft
• 1/2-gallon tank capacity
• Overflow detection switch included
• 20' of 3/8" ID vinyl tubing included

Installation Tips

• This pump comes shipped with a cardboard insert marked "REMOVE". Please remove and discard this insert before operating pump. Failure to remove the insert will cause the pump to overflow.
• Check the tubing for obstructions or kinks. Clean or replace the tubing, if necessary.

This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc.

From the Manufacturer

Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. The VCMA-15ULST includes a safety switch, 20-feet of tubing, and a 6-foot power cord.

• AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
• THERMALLY PROTECTED, HIGH-PERFORMANCE MOTOR: 1/50 HP, 1.0 Amps, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
• BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)
• INCLUDES OVERFLOW DETECTION SWITCH and VINYL TUBING: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required; 20' x 3/8" I.D. vinyl tubing
• SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8" OD barbed discharge, 65 GPH at 1' lift, 15' shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140° F
