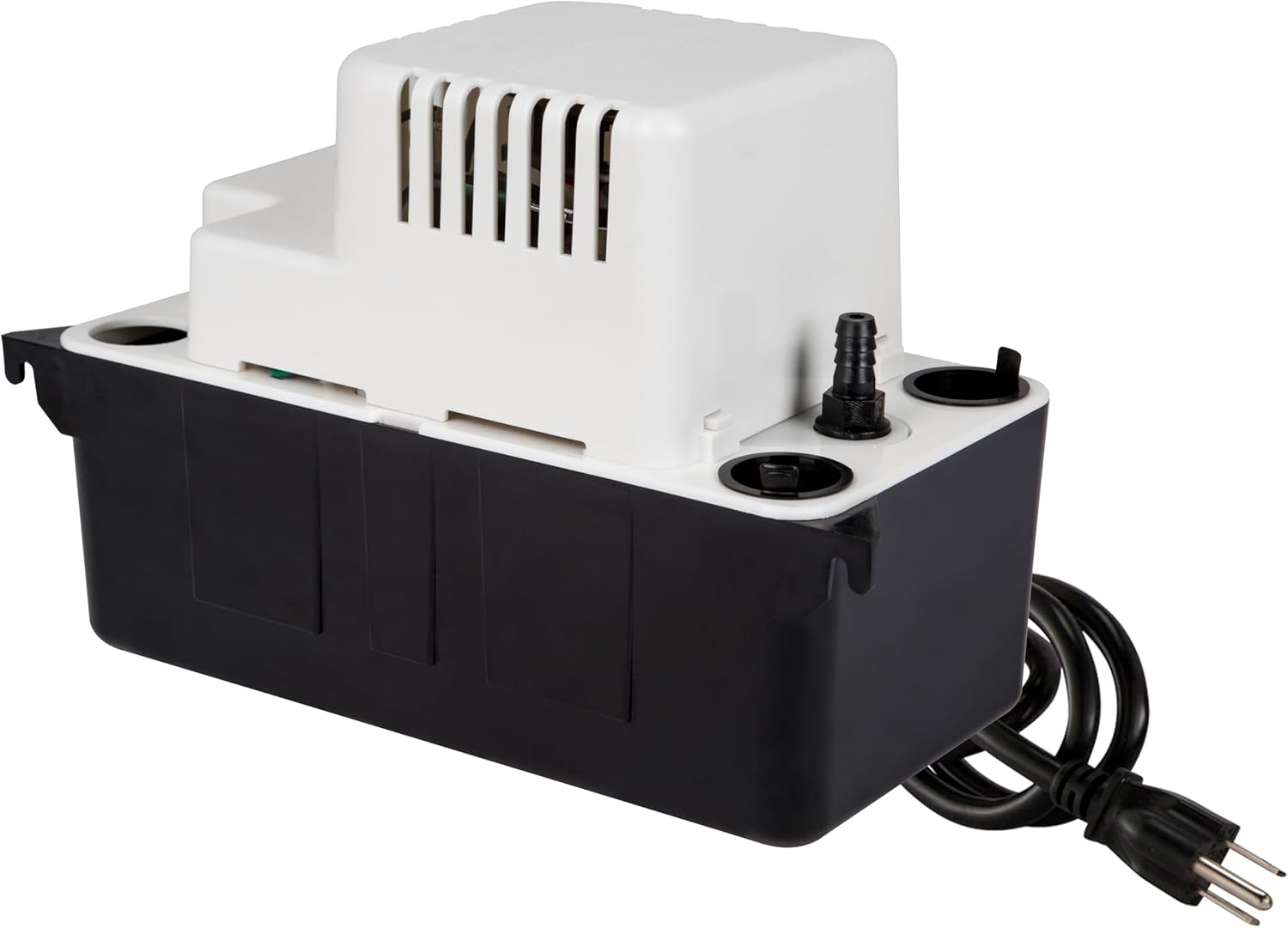

VCMA-15UL 115 Volt, 65 GPH, 1/50 HP Automatic Condensate Removal Pump for HVAC/Refrigeration Systems/Dehumidifiers (no safety switch), 6-Foot Cord, Black/White, 554401 Base Model (no overflow detection switch) Pump

Product Description

The Little Giant VCMA-15UL condensate removal pump is a 1/50 hp pump designed for collecting, detecting, and removing condensation from air conditioners, dehumidifiers, and refrigeration equipment. Its robust design is also suitable for high-efficiency gas furnace condensation and condensing boilers. This unit includes a 1/2-gallon condensate holding tank and a 3/8" O.D. barbed discharge adapter with a built-in check valve, and a 6' power cord with plug. This model does not come with an overflow detection switch. The high-performance 115-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadian standards.

Features & Benefits

• 1/50 hp high-performance motor pumps 65 gallons of water per hour
• ABS tank, motor cover, and volute
• Stainless steel motor shaft
• 1/2-gallon tank capacity

Installation Tips

• This pump comes shipped with a cardboard insert marked "REMOVE". Please remove and discard this insert before operating pump. Failure to remove the insert will cause the pump to overflow.
• Check the tubing for obstructions or kinks. Clean or replace the tubing, if necessary.

This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc.

From the Manufacturer

Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required.

• AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
• THERMALLY PROTECTED, HIGH-PERFORMANCE MOTOR: 1/50 HP, 1.0 Amps, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
• BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)

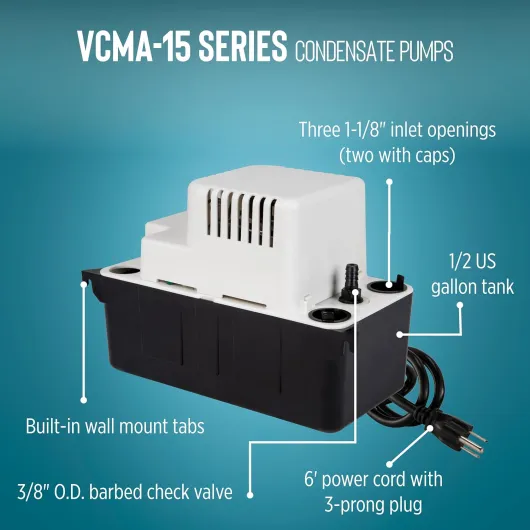

• INCLUDES: 3/8-inch O.D. barbed discharge adapter with built-in check valve, three 1/8-inch diameter openings allowing multiple appliances to use one pump; DOES NOT INCLUDE OVERFLOW DETECTION SWITCH
• SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8" OD barbed discharge, 65 GPH at 1' lift, 15' shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140° F
